oracle office building

Thesis Design

SITE DESCRIPTION

LOCATION: Marathahalli, Outer Ring Road, Bangalore, Karnataka.

AREA: 7.96 acres.

Site’s northern boundary edge is the nala. This gives a barrier in viewpoint and activities. But can be intervene for opportunity of interactive open spaces in the design.

The site is opened mainly from western side only. A kaccha road is there at eastern side which can be used as service road. The site is accessed from NH 44.

PROJECT BRIEF

ORACLE INDIA PVT. LTD. has planned to open its campus outside the US in Bangalore, marking a significant investment by the US-based online retailer in one of its fastest growing markets. Spanning 8 acres, the state-of-art campus will have ‘thousands’ of employees managing back-end operations of Oracle’s global businesses.

The design for Oracle’s corporate campus creates an integrated and sustainable vision of merging landscape and architecture to create a new form of symbiotic living and working. The building’s design will directly responds to the site’s climate, rich cultural heritage and clients’s goal of further elevating itself as a global leader in business consulting. IT, software engineering and outsourcing services.

SITE ANALYSIS

GEOGRAPHICAL FEATURES

1. The top soil of 0.3m is non-uniform.

2. The underlying layer is laterite upto 2.5 to 6.0m followed by disintegrated rock.

3. At some locations medium rock was met with at depths varying from 11.0 to 14.0 m. At other locations even at 15.0m medium rock was not met with.

4. No water table was met with in the boreholes at the time of exploration. However, perched water table is likely to occur during rainy season.

5. For the proposed structure shallow foundations can be given at any depth from 1.5m, resting the foundation on the late-rite / disintegrated rock layer.

Oracle Office Building - South-Western View | Main Entrance

CONCEPT

CONTEMPORARY GARDEN

‘Once called the "Garden City of India", this is no longer applicable to Bangalore, which is now a large, cosmopolitan city with diminishing green spaces and a large working population.’ This change is evident by the changing climate and environment quality.

LAND SUSTAINABILITY

Bengaluru is one of India’s most progressive and developed cities, blessed with a pleasant climate. The past decade has seen a mad surge of development, coupled with traffic congestion and rising pollution levels. The space is being compromised as IT buildings are coming up on very acre of land and the green belt is depleting at a very high rate. Hence, the cost ability to improve adverse condition has decreased due to shortage of land and the opportunity of taking up the garden vertically rises.

1. BROAD CONCEPT

2. FORM EVOLUTION

3. VERTICAL STACKING

4. TREE THEORY TO DESIGN BUILDING

‘The building is designed to be like a tree’ with strong and heavy roots that has all services incorporated and the ‘rest of the levels are projecting out like branches of the tree, holding the foliage’.

Structure of the building is compared to a tree as; the basement is root where main service functioning takes place, the cantilever act as branches to take in natural sunlight and finally the bio wall acts leaves foliage that are also prevents heat to enter and regulates temperature within the building.

SITE PLAN

Oracle Office Building - Site Plan

SOME INFOGRAPHICS ABOUT SITE PLAN...

Oracle Office Building - Ground Floor Plan w.r.t. Site

AREA CALCULATIONS

1. Total Site Area = 32.235 sqm or 7.96 acres

2. Total built-up area = 40500 sqm

3. Ground Coverage = 6100 sqm

4. Percentage of Ground Coverage = 18.9%

5. Remaining Ground Coverage for Future expansion = 16.1%

6. Permissible F.A.R = 2.50

7. Achieved F.A.R = 1.26

8. Remaining F.A.R for future expansion = 1.24

9. Total Parking for cars: Stilt Floor(222) + Basement 1(404) + Basement 2(384) + Surface(50)=1060 ECUs

10. Total Parking for buses: 17

11. Percentage of Green on site = 40%

AREA PROGRAM

Office

Spaces

Reception

Waiting Area

Entrance Lobby

Workstations

Cubicles

Conference Rooms

Meeting Rooms

Presentation Areas

Washrooms

Utility rooms

Mech. Room (AHU )

IDF

Labs (Control Room)

Electrical Room

Area (Sqm)

15

50

250

4.0 - 4.5 sqm per person

35 @ 10 sqm

40 - 50

5-6 @ 30 sqm (10pax)

2 @ 60 sqm

150 – 180

10

4 @ 35 sqm

2 @ 15-20 sqm

2 @ 35 sqm

Institution

Spaces

Training Centre

Indoor Games

Gym

Visitor's Suites (9)

Mini Bank

Travel Services

Medical Services

Shops

Food Court (Cafeteria)

Auditorium

Area (Sqm)

300 - 350

500

300

350

150 sqm

45 - 50

150 - 200

1000 - 1200

1200 – 1500

(800-850 pax)

Services

Area (Sqm)

250

100

150

300

150

250 - 280

100

500 - 550

300 - 315

500

400 - 450

150 - 200

250

300 - 320

200

250 - 275

1100 (950 basement + 150 surface)

Spaces

Security Office

Registration Desk

Generator Room (DG)

Control Room of DG

Pump Room

STP

WTP

Retention Tank

LT Panel Room

A.C. Plant Room

Electric Sub-Station

Store

Audi Store

Audi A.H.U. Room

Fan Room

Battery Rooms

Kitchen Service Area

Data Center

Parking

Oracle Office Building - South Eastern View

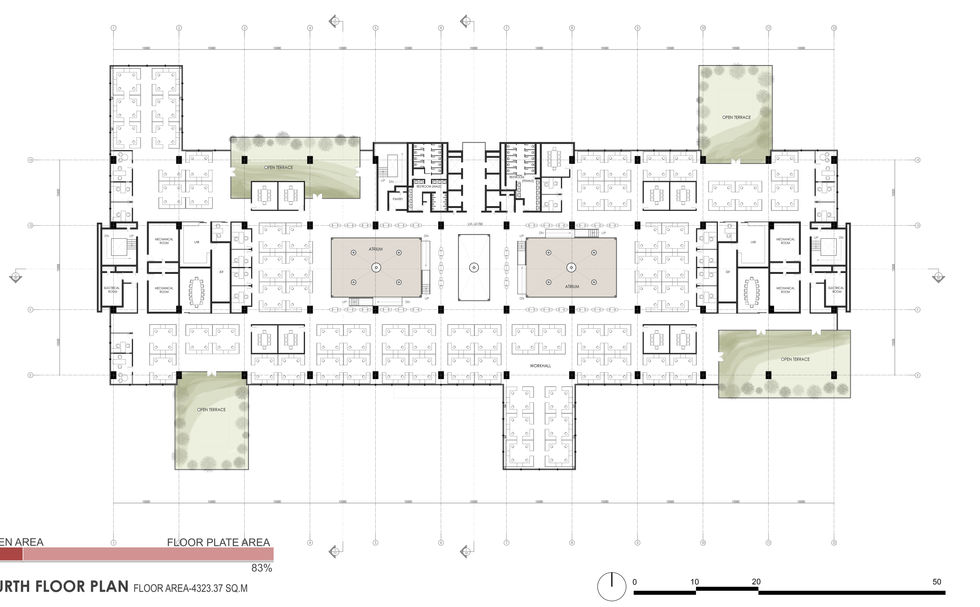

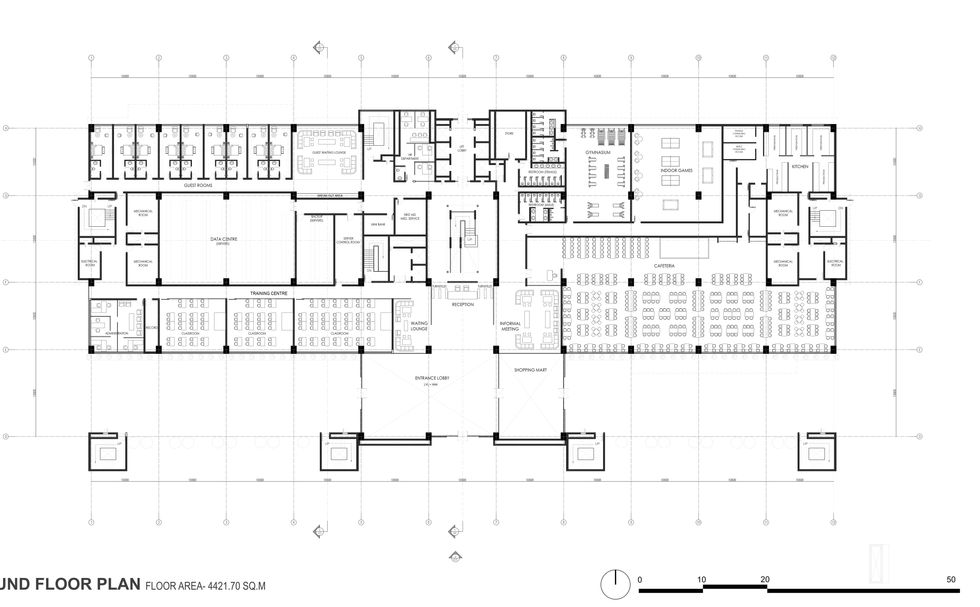

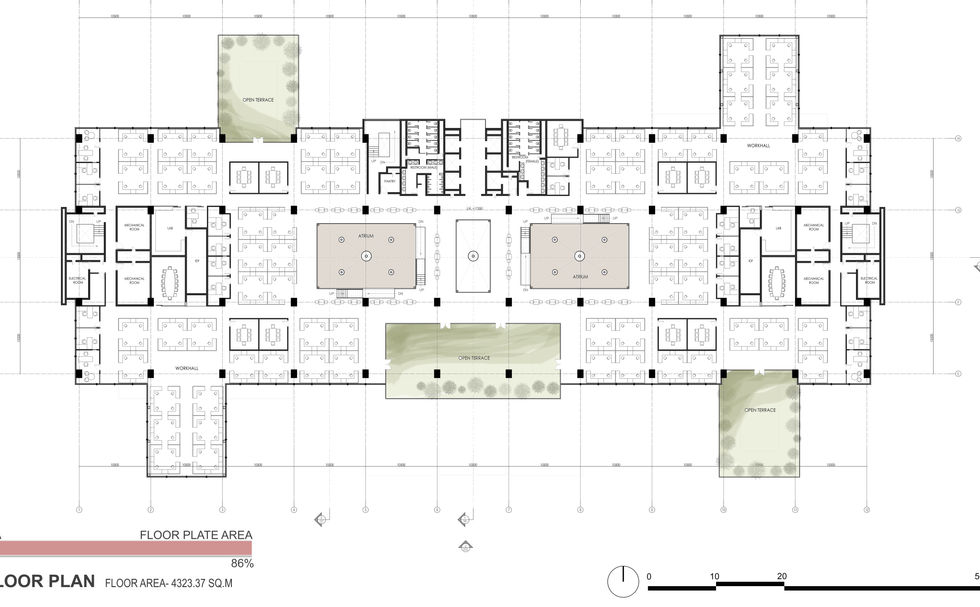

PLANS GALLERY

Section AA'

Section CC'

Section BB'

DETAILS shown in Section AA' and Section CC'...

DETAIL 1 - Facade System

Sections

Double plane glass with outer glass is Transparent Luminescent Solar Concentrator (TLSC) and inner glass is Electric Glass.

Switch Glass: Layer of film between two glass.

1. very durable

2. can be used as projector screen

3. can last for 15 - 20 years

4. 98% UV protection

5. 40% solar reduction

EXHAUST AIR FACADE

To collect air from tower office, and instead of allowing it to escape into the atmosphere, redirect it back down the double glass skin cavities. Sensors within cavities will modulate dampers at the top of the building, directing the air to the optimal zones of the cavities depending on the time of day and outdoor temperature.

45 degree Celsius - 30 degree Celsius

Additional dampers will allow filtered exterior air to enter directly into cavity during economizing periods, such as at night and winter when the outdoor air is lower in temperature then the collected exhaust air.

Plan

DETAIL 2 - Introducing Daylight at any Time

This is a day lighting system that collects natural light with a parabolic dish concentrator and delivers it through pipes to any place in the building. the collector re-directs the light into an “ULTRA SUN LIGHT CONCENTRATOR”, which channels it into the aperture of a small light pipe. because of the latest technology uses “I.R. CUT COATING TECHNOLOGY, there is no heat loss or gain associated with the transmitted day light”, which reduces heating and air-conditioning cost.

DETAIL 3 - Bio-wall System

RIGID PVC SHEET

METAL TUBE SCAFFOLDING

EXTERIOR WALL

TWO SHEETS OF POLY-AMIDE FELT

Section

DETAIL 4 - Truss System used in Structure

There are two ties in the back-span of the truss. the top and the bottom slab will be acting as a chord and tie of the truss respectively . these trusses are definitely located on both the sides of the slab.

DETAIL 5 - Air Purifying Plants

SPECIAL MATERIAL - Hemcrete

TRADITIONAL HEMCRETE is a bio-composite, thermal walling material from ‘hemp’, ‘lime’ and ‘water’. CARBON NEGATIVE HEMP.

North Elevation

East Elevation

About 40% of the total site is covered with green collaboration areas to reduce the sun reflections and radiation. Also, these collaboration areas caters the social life among the employees working here. Employees can interact among themselves here, play sports for recreational purposes to release stress due to work.

Oracle Office Building - Outdoor Collaboration Spaces

East and west facade receives highest solar radiation and heat as the sun is very low in these two directions. therefore the idea of providing service cores on facade facing these direction came into existence. To minimize the solar heat gain (SHG), vertical bio wall perfectly blends on the concrete wall. this enhance the the idea that there is very less land available

Oracle Office Building - Bio-wall

BOX CANTILEVERS are projecting out from the typical floor plates at the length of 14.5 m. The cantilever are simply supported through very simpler structure tricks. The roof of the cantilevers are proposed as green breakout area on every floor to minimize the solar heat radiation and monotonous office life.

Oracle Office Building - Box Cantilevers

Oracle Office Building - Terraced Garden Around the Building

Oracle Office Building - Open Terrace Garden on Each Floor

Oracle Office Building - View of Entrance Foyer Covered with Glass
